● How to install :

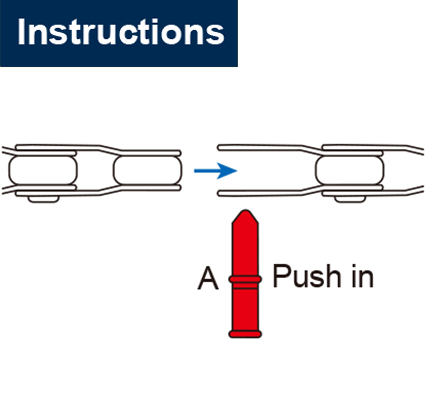

Step 1:Connect both ends of the chain with the Bullet Type connecting pin.(Fig.1)

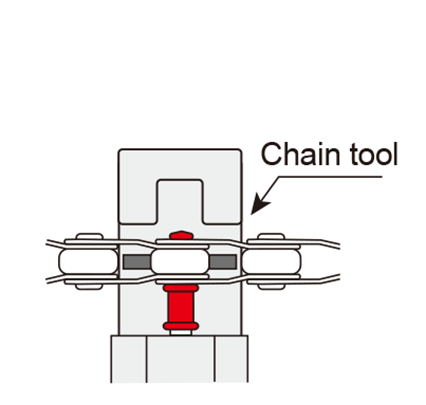

Step 2:Put the chain on the Chain tool and tighten the adjustment nut.(Fig.2)
Step 3:Use a Chain tool and turn the rotating bar to advance the Bullet Type connecting pin into the chain. Next, loosen the adjustment nut and remove the chain. (Fig.3)
Step 4:Use pliers to break off the excess part . (Fig.4)


Compatibility : KMC KK710/ HL1L Wide/ HL1 Wide chains

Suitable For

BMX & Fixie
